What is 3D Laser Scanning and BIM Modeling
3D laser scanning is an exceptionally powerful tool for 3D imaging. This technology allows for the complete capture of a designated area in X, Y, and Z coordinates without any physical contact. The scanner emits a laser beam, which produces a 360-degree scan image that is composed of literally millions of 3D points, which together form a point ‘cloud’. 3D laser scanning represents a form of digital modeling technology that uses laser light and basic mathematics to create accurate 3D models. Depending on the type of 3D laser scanner, a laser point or line is directed at the object being scanned. Specialized software subsequently calculates and records data points where the laser intersects the surface of the object, using triangulation or time-of-flight. These positions are represented by Cartesian coordinates (X, Y, and Z planes).

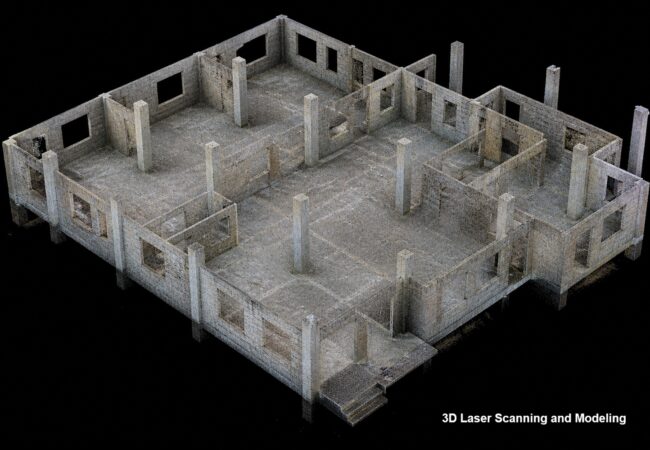

Often, thousands or even millions of data points are collected from multiple angles until a comprehensive 360° scan is achieved. When complete, this results in a cluster of data points called a point cloud, which provides engineers with the information needed to develop a mesh and/or CAD model of the object. Scan to BIM (Building Information Modeling) is defined as a technique that leverages 3D laser scanning technology to collect accurate spatial data from an existing building or site. This data, often formatted as a point cloud, is then converted into an accurate and information-rich BIM model.
3D Laser Scanning
We provide expert 3D laser scanning solutions
Rehabilitation of 3D Scanning: Facades and decorative elements that have deteriorated over time, special changes made to a single block, and facilities introduced abroad, etc. All these unrecorded components will be accurately captured in digital format and will be essential for developing specific technical solutions for each case. Thanks to point cloud and virtual visits, technical difficulties can be anticipated, thus preventing work interruptions.

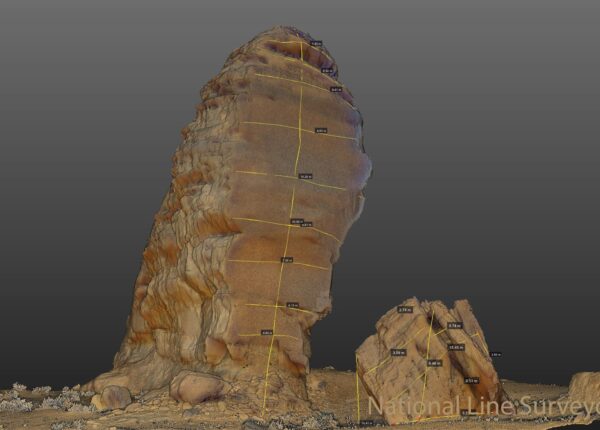

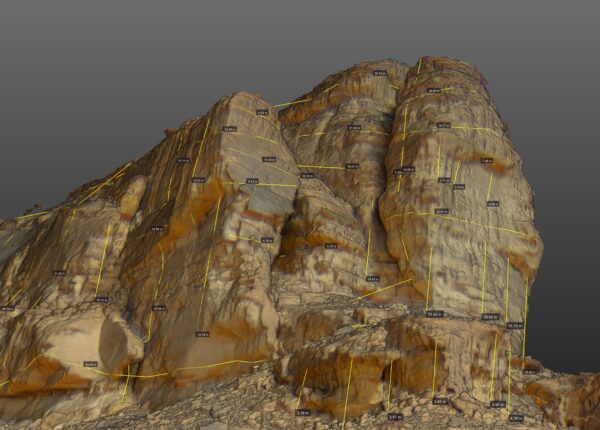

3D Scanning of Historical Heritage: 3D scanning technology serves as an excellent tool for surveying structures that contribute to a community’s architectural, historical and artistic heritage. The laser scanning process produces a point cloud that meticulously captures the complex geometries of architectural features, sculptures and key environments, among other things. The data collected will create an extremely valuable database, enabling us to assess the condition of ancient buildings without risking any damage. As a result, we can develop conservation and maintenance strategies informed by a wealth of information.
3D Laser Scanning
ComNav LS600 3D Laser Scanner and Trimble TX8 3D Laser Scanner
ComNav LS600 3D Laser Scanner
The ComNav LS600 3D Laser Scanner represents a cutting-edge handheld device that integrates state-of-the-art SLAM technology, an integrated RTK module for precision at the centimeter level, and dual wide-angle cameras for vibrant color capture. By utilizing multi-sensor fusion, which includes LiDAR, IMU, and camera systems, the LS600 provides exceptional performance in both indoor and outdoor settings—offering rapid scanning, detailed color point clouds, and efficient post-processing.
The Trimble TX8 3D Laser Scanner
Our Trimble TX8 3D Laser Scanner redefines performance and usability standards in the swift collection of 3D data. Employing a cutting-edge mix of speed, long-range capability, and accuracy, the Trimble TX8 yields superior results in civil surveying, chemical plant and industrial measurement, civil and mechanical engineering, and construction. The Trimble TX8 can measure One Million Points per second while ensuring precise data capture across its complete measurement range. It achieves high-speed measurements without compromising on range or accuracy, delivering the high-density 3D point cloud essential for design and analysis experts.
3D Laser Scanning
Our Specialty with 3D Laser Scanning Services in Saudi arabia
3D Scanning in Industrial Sector: Scanning technology plays a vital role in the industrial sector, where comprehensive documentation of an industrial facility is produced through 3D laser surveys of its components. The aim is to enhance plant management and assist in operations related to equipment modifications, expansions or replacements. 3D laser scanning of buildings enables the owner to make informed decisions without the risk of errors and eliminates the need for multiple site visits to take measurements.
Our Specialty in 3D Laser Scanning: At the heart of our laser scanning services, we take great pride in providing innovative scanning solutions designed to meet the diverse demands of industry. Our expertise lies in leveraging advanced laser scanning technology to deliver exceptionally accurate, efficient and detailed 3D documentation for a wide array of applications. Here’s what makes us unique:
High-Accuracy Scanning
Versatile Environment Compatibility
Non-Destructive Scanning
Georeferencing and Alignment
Volume and Deformation Assessment
Integration with BIM and GIS Mapping
3D Laser Scanning
Benefits of Scan to BIM in the Architecture, Engineering, and Construction Industry
• By using 3D laser scanning technology, experts can achieve greater accuracy and eliminate human error.
• This leads to a reduction in risks associated with inaccurate measurements and poor construction plans.
• Scanning to BIM services greatly improves workflow.
• The use of 3D laser scanning in construction reduces design errors, reduces material waste and construction delays.
• Access to real-time data ensures that projects adhere to their timelines, facilitating more effective decision-making.
Our services include 3D Laser Scanning, 3D Modeling, Stockpile 3D Scanning Survey, and BIM Modeling for the Kingdom of Saudi Arabia.
3D Laser Scanning Work Process
National Line Survey provide Expert and professional 3d laser scanning survey in the fields of residential, historical heritage, commercial, infrastructure, and industrial areas.
National Line Survey (NLS) are available according to your 3D laser Scanning services requirements at any time in Jubail, Dammam, Khobar, Riyadh, Makkah, Medinah, Jeddah, Yanbu, Jazan, Tabuk, Neom City, and whole Kingdom Saudi Arabia.
Our company surveyors (National Line Survey) collect 3d point cloud survey data with accuracy and precision to maintain high quality survey services.
